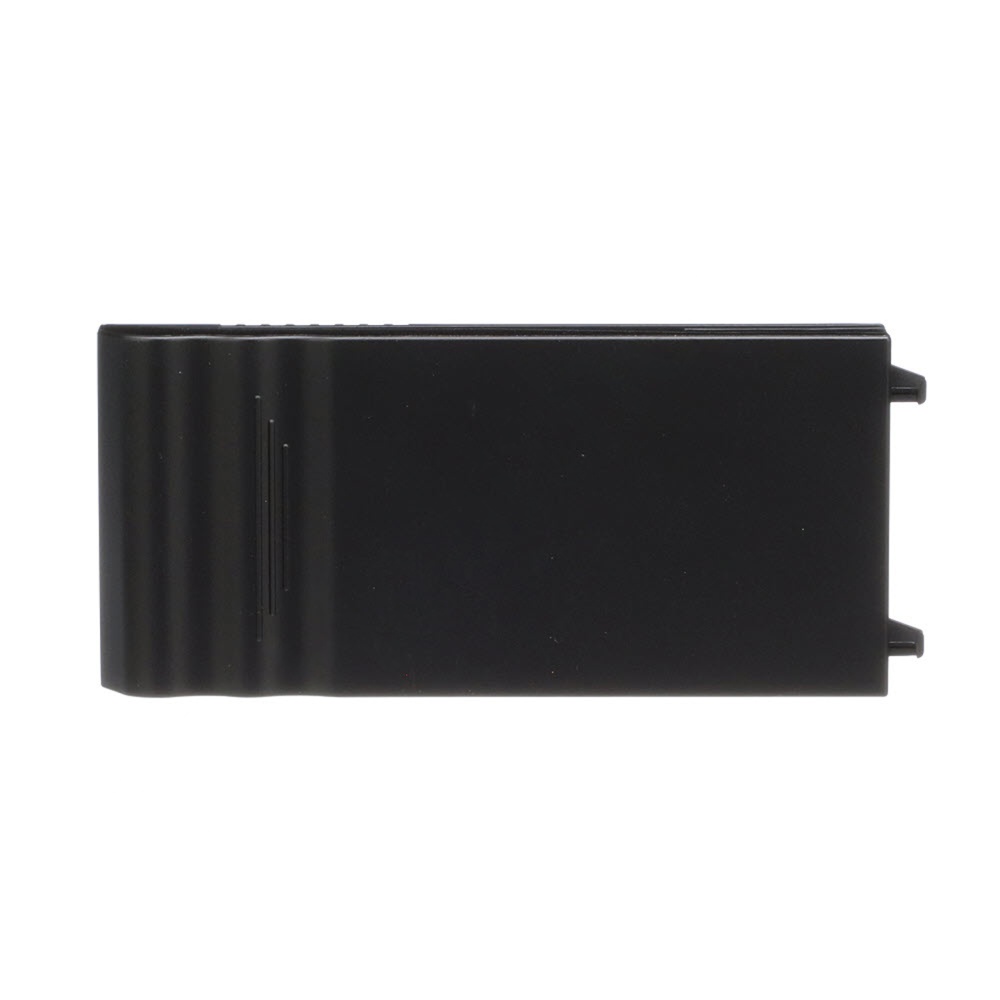

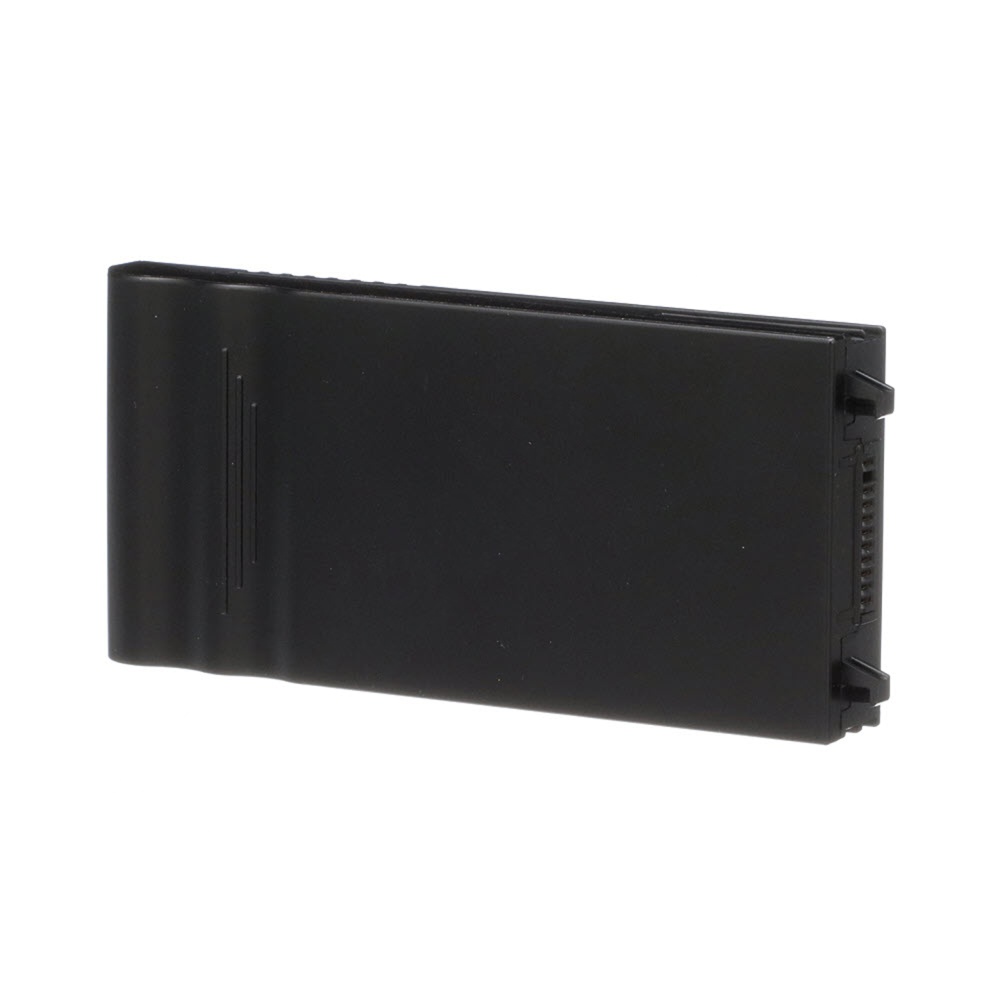

LOGIQ e Battery Pack 5451284-2

5451284-2
5451284
Ultrasound
LOGIQ e
GE Healthcare
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Lithium-ion, 3.6 Ah battery pack
  • Inbuilt battery controller Printed Circuit Board (PCB) assembly
  • Four series two parallel (4S2P) flat pack battery circuit configuration
  • Nominal voltage rating 14.4 VDC

Product Overview

LOGIQ e Battery Pack is comprised of two pairs of four Lithium-Ion (li-on) cells connected in series to generate 14.4 VDC and 3600 mAh capacity. The battery pack is built-in with a battery management Printed Circuit Board Assembly (PCBA). The built-in over current, over temperature, over charge and over discharge protection saves the battery from functioning during abnormal conditions. The rechargeable battery pack is a specially designed module intended for use in medical applications. The built-in secondary battery protection IC chip S-8244AAFFN-CEF-T2, 4.35 V, MSO-8 includes voltage detector circuit and delay circuit.

Equivalent Part :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
5451284

The LOGIQ e R6 Battery Pack is a battery that is used to
