Corometrics 250 Recorder Board RoHS
2025177-072
2025177-018
Maternal Infant Care
GE Healthcare
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Highly reliable
  • It is a ROHS compliant

Product Overview

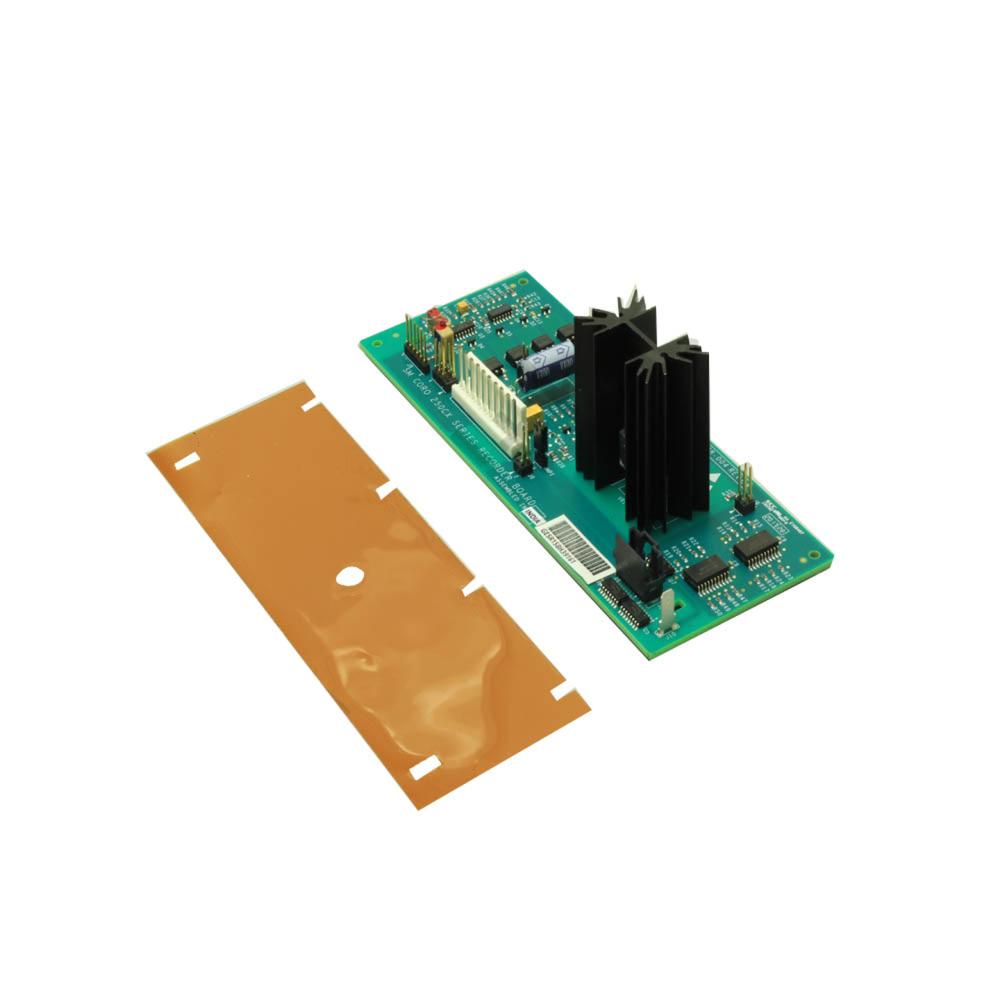

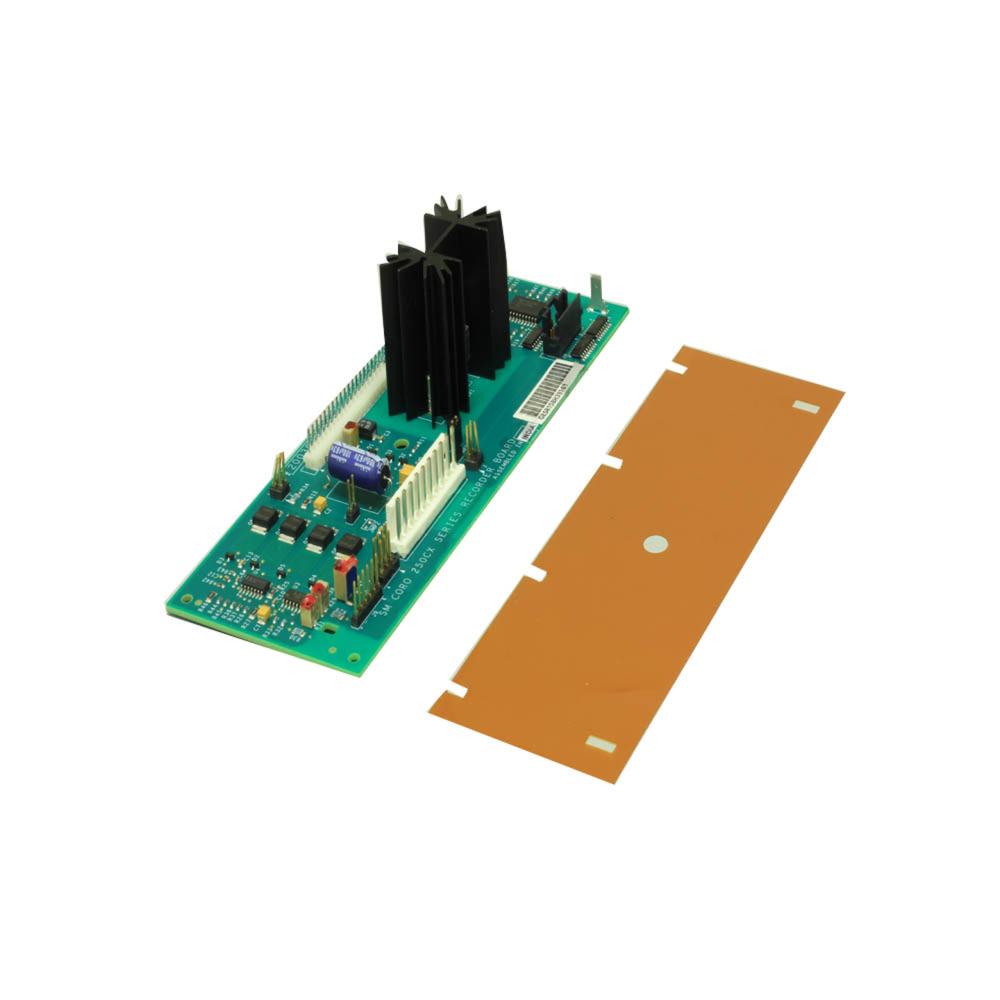

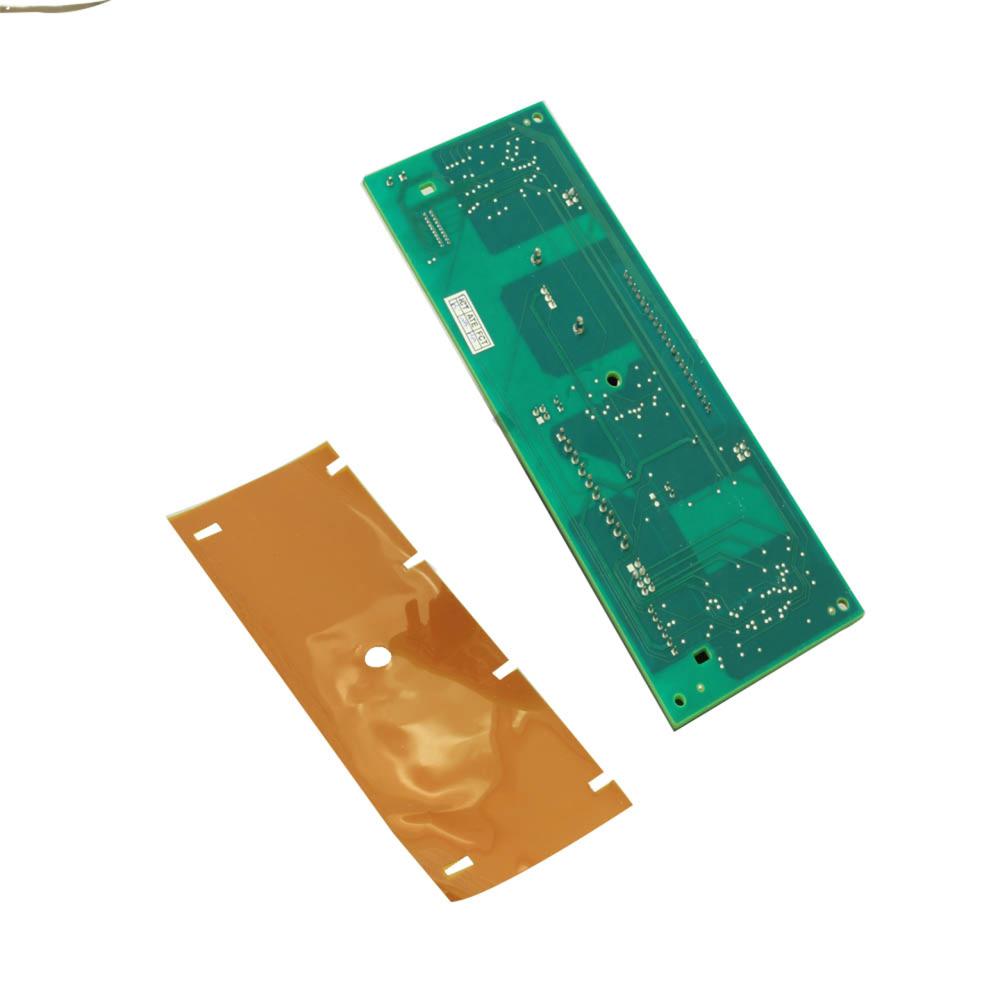

The Recorder Board for Corometrics™ 250 cx Series Monitor is a field replaceable unit (FRU). The Corometrics™ 250 cx Series monitor is a medical device for monitoring maternal/fetal parameters (Fetal Heart Rate, Uterine Activity, Maternal Noninvasive Blood Pressure, Maternal Pulse Oximetry, and Maternal/Fetal ECG) in labor and delivery (antepartum, intrapartum, and postpartum care). The monitor is equipped with an LCD display, which provides simultaneous display of fetal and maternal parameters plus the maternal waveforms, and a recorder, which prints continuous trends and alphanumeric data on one strip chart. The recorder board is responsible for driving the recorder motor and the recorder print head device along with providing the main system board with paper out/low/misload status. To drive the motor, it receives pulses from the main system board and provides the proper drive circuitry to drive the stepper motor four phase windings. To drive the print head an adjustable power supply is provided which is set to the print head specifications (each print head is unique.). Data to be printed and control information are received from the main system board, buffered and presented to the print head. Sensors from the recorder assembly to detect paper low/out/misload are received and translated to digital status lines to be sent to the main system board. The product is diligently designed for high performance and reliability. It is securely packaged inside a high quality packing box to avoid physical damage during transit and labeled with details about the product, Quality Assurance (QA) seal and shipment details.

Compatible Products

Corometrics 250 Series

Corometrics 250 Series

Equivalent Part :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
2025177-018
  • Corometrics 250 Recorder Board

Return And Exchange

Please ship this returnable part back within 21 calendar days of receipt of your original shipment. Failure to return the part within 21 calendar days may result in an additional charge.
