Valve Flow Control Breathing Circuit Gas (BCG)
1503-3218-000
1503-3218-000-S
Anesthesia Delivery
GE Healthcare
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Good dimensional stability
  • High corrosion resistance
  • High fatigue endurance
  • High strength and stiffness properties

Product Overview

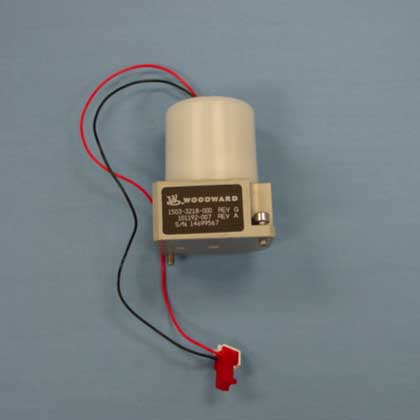

The Flow Control Valve for Breathing Circuit Gas (BCG) module is a proportional flow metering valve. A proportional valve allows immeasurable positioning of spools hence providing immeasurable adjustable flow volumes. The various speeds are attained by changing the electrical signal level to get the required flow. All wetted materials in the valve utilize materials that are FDA and/or USP class III (or higher) registration. All wetted materials in the valve are compatible with Oxygen at 100%. The valve is designed to operate for a minimum 10-year life period (25,000 hours) in a dry medical air or Oxygen environment without service. The expected number of cycles during this period is 12,000,000 OFF/On/OFF cycles, based on a 480 cycle per hour rate. The inlet port of the valve houses a stainless steel sintered woven, wire mesh square weave filter capable of filtering 150 micron particles. The valve is cleaned as per the Criteria for cleanliness for Medium Pressure Oxygen Service (MPOS). The GE product is an innovation and technology which fits well into versatile customer needs. It is manufactured using high precision techniques which helps to achieve a good surface finish as well as good product consistency. The part is diligently designed for high performance and reliability. It is securely packaged inside a high quality packing box to avoid physical damage during transit and labeled with details about the product, Quality Assurance (QA) seal and shipment details.

Compatible Products

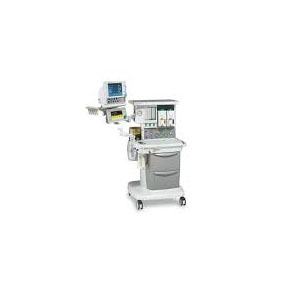

Aestiva WU_0042

Aestiva WU_0042

Aespire WU_0039

Aespire WU_0039

Equivalent Part :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
1503-3218-000-S

VALVE FLOW CONTROL 120 LPM MPOS

Return And Exchange

Please ship this returnable part back within 21 calendar days of receipt of your original shipment. Failure to return the part within 21 calendar days may result in an additional charge.
