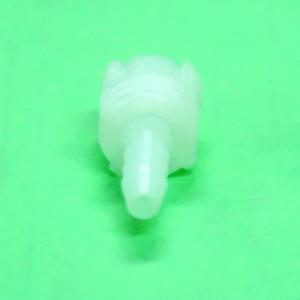

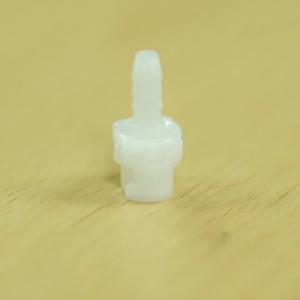

Coupling Inline White BCG Body Half 4mm Hose Barb
| 1503-3119-000 | |
| Anesthesia Delivery | |
| GE HealthCare | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Prevents both kinked tube and accidental disconnection.
- Easy to clean
- Reusable
- Enhanced durability
Product Overview
The Coupling Inline White BCG Body Half 4mm Hose Barb is a coupling which connects the adjustable venturi with the flowmeter. The twist to connect coupling provide a more secure and reliable connection. The tube is free to rotate while connected to this coupling. This prevents both kinking of the tube and accidental disconnection while in use. It is used in bulkhead assembly. It is quick disconnect coupling with replaceable O-ring Seal. The O-ring lubricant must be O₂ Compatible. The flowrate will be more than 30 L/min and the maximum pressure will be 100 psi. It is used in the breathing circuit gas system. It is made up of thermoplastic acetal. The material provides high strength and stiffness, good wear and chemical resistance, enhanced dimensional stability and it is easy to machine. These are being used in UL Voluson P8, ARC Carestation 600, XR Optima XR220amx, Aespire 7100, UL Vivid E95, ARC Aespire View, MS CARESCAPE™ Monitor B850, ARC Aestiva 7100, ARC iVent 201, ARC Aespire 7100, MS PDM, ARC Airway Gas Module, MIC Panda™ iRES Warmer, Aespire 100, MS TRAMRAC, Aespire 7900, MS CARESCAPE™ Monitor B650, ARC Aespire 7900, ARC Aisys, ARC Aestiva MRI and Aisys.
Compatible Products
Aisys
Aestiva WU_0042
Avance
