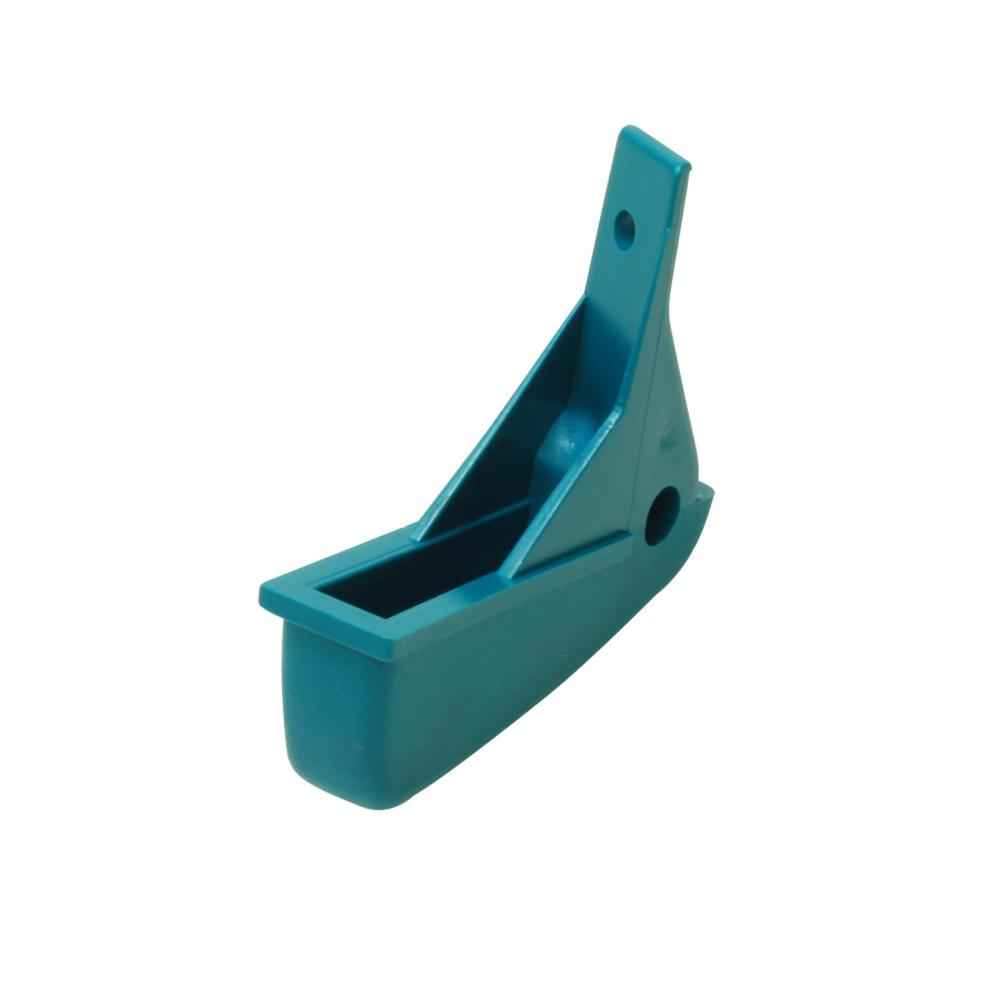

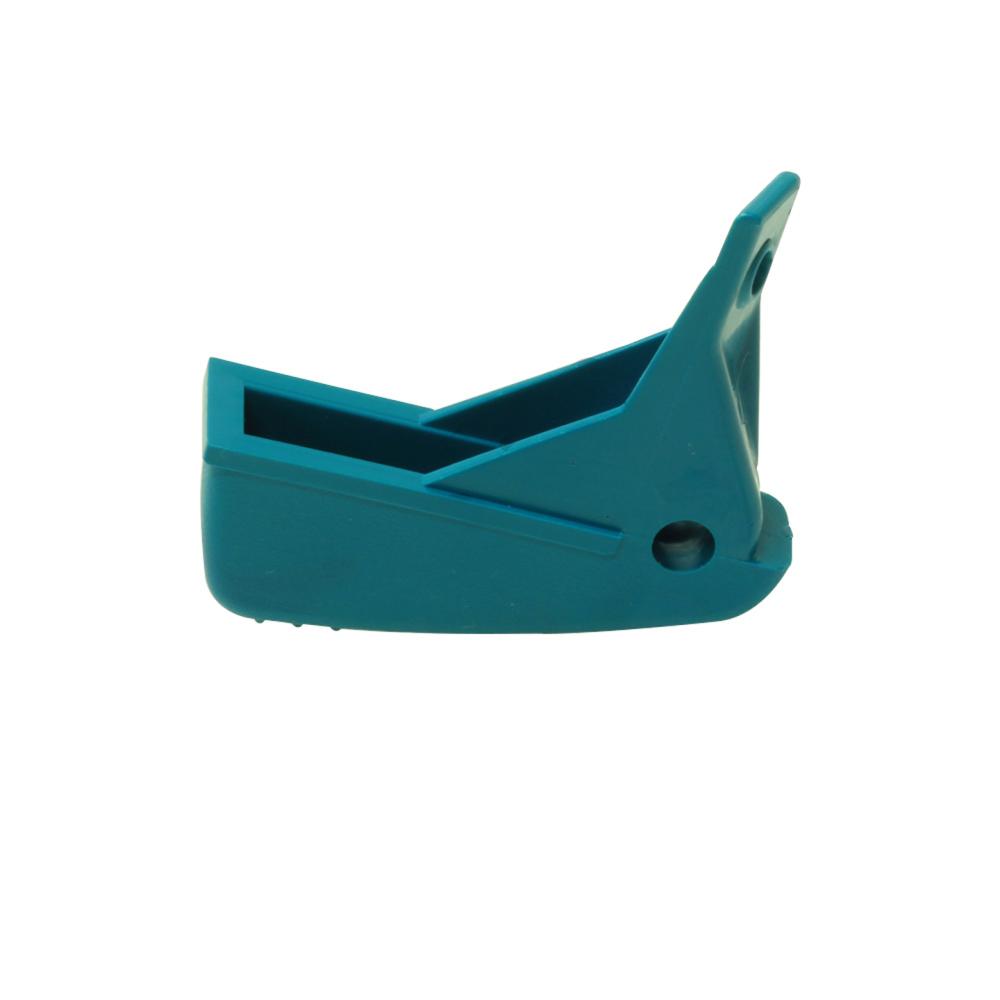

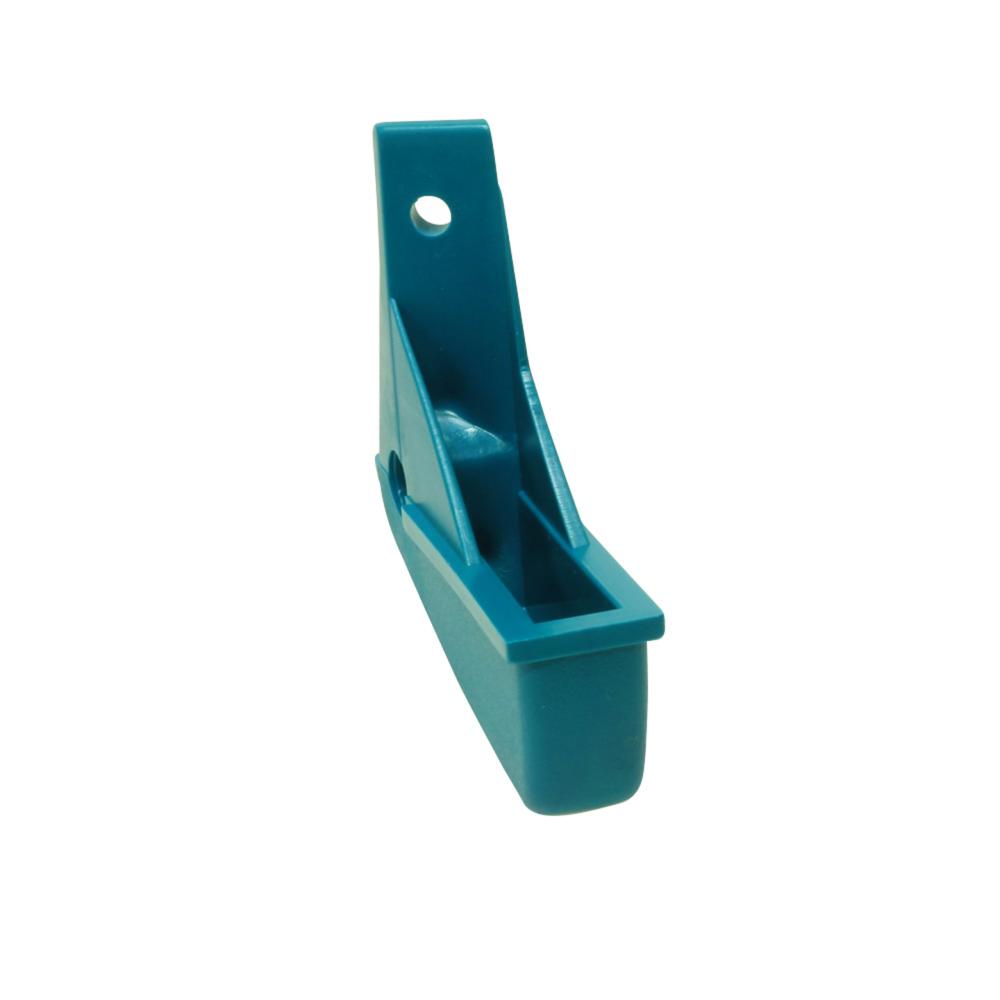

Lever Lock Release
| 1407-3808-000 | |
| Anesthesia Delivery | |
| GE HealthCare | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Durable and reliable
- Excellent toughness
- Sharp edges or corners are broken by 0.3 - 0.5 mm
- Good chemical and impact resistance
Product Overview
The Lever Lock Release is a component of the bag arm assembly, which is a holding device. It is used to hold the reservoir bag in an anesthesia machine. It has a port end and a base end. A lock release lever comes as a part of bag arm upper assembly along with a cover, a bag port housing, a retaining ring, a Nyloc nut of M3 size. A dowel pin, a screw and washer of M3 size come as parts of bag arm lower assembly. The base end is fixed to the machine by means of a lock ring and can be rotated. The bag port end holds the reservoir / breathing circuit bag. A housing encloses the bag port. A lever is installed onto the housing and closed by a cover. The lever is pushed by means of retaining ring and nut, to raise the bag support arm and arm is rotated at the base end to the top position. To lower it, the arm is rotated down to the lower position. Thus the position of reservoir bag can be changed according to the patient’s need.
Compatible Products
S/5 Aespire
Aisys
Avance
