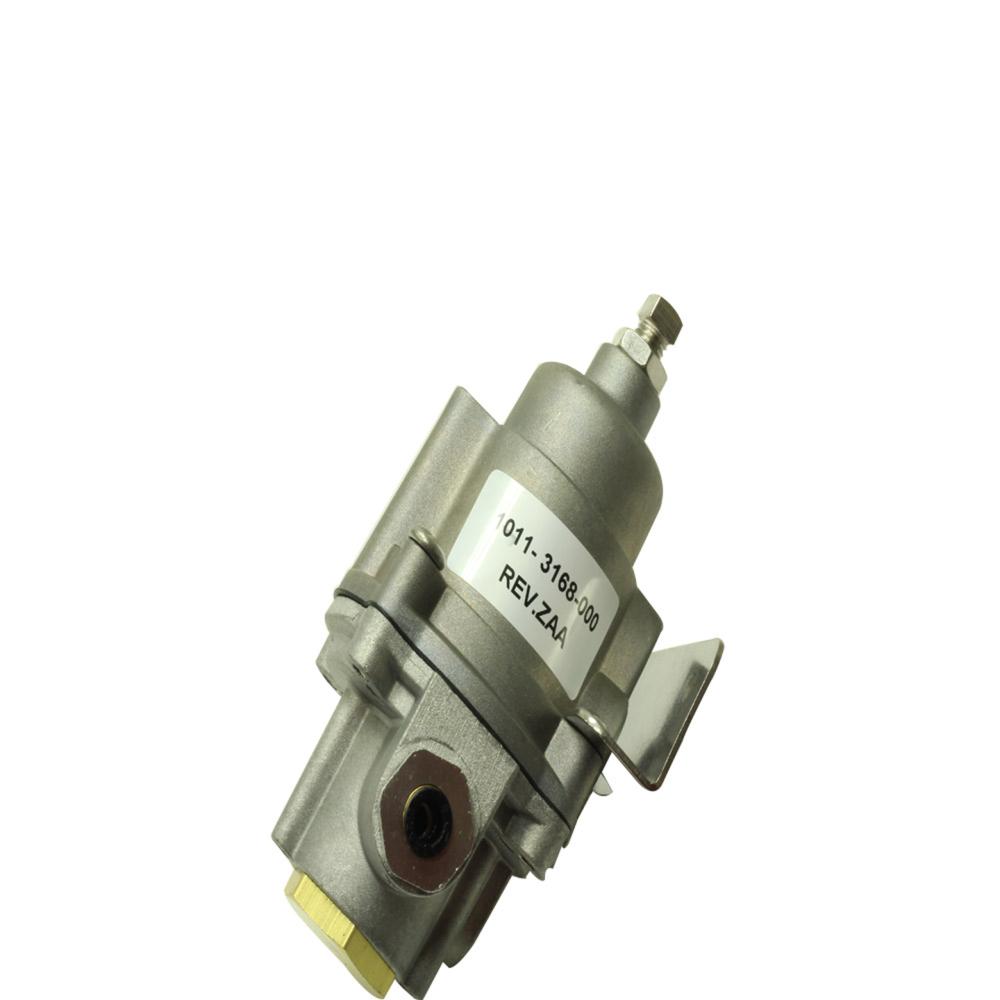

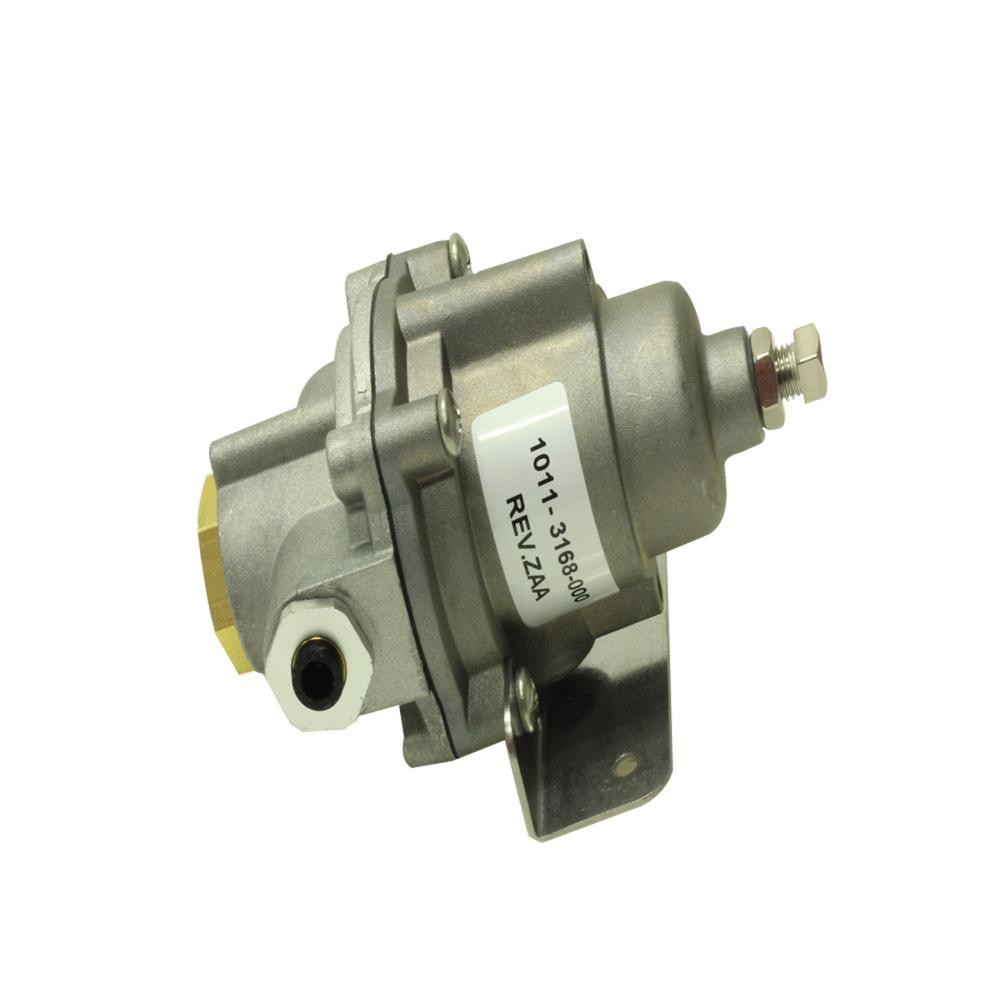

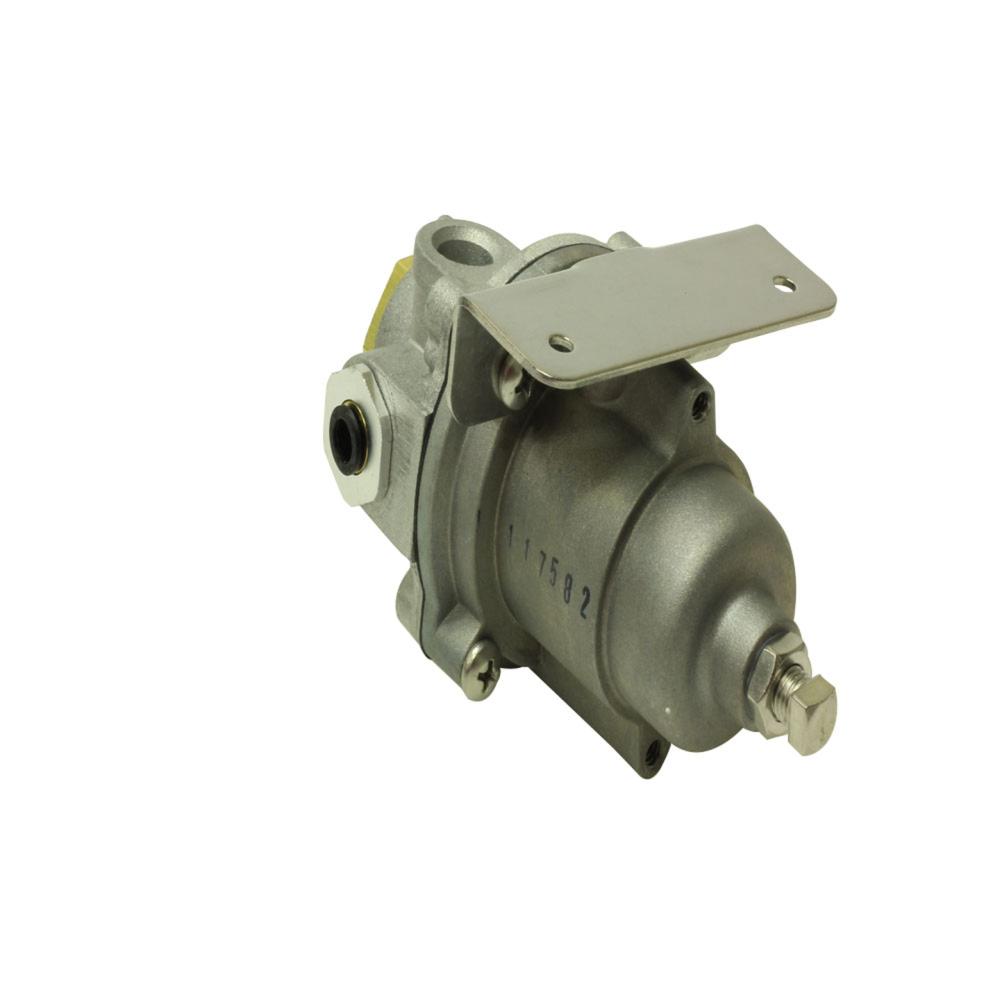

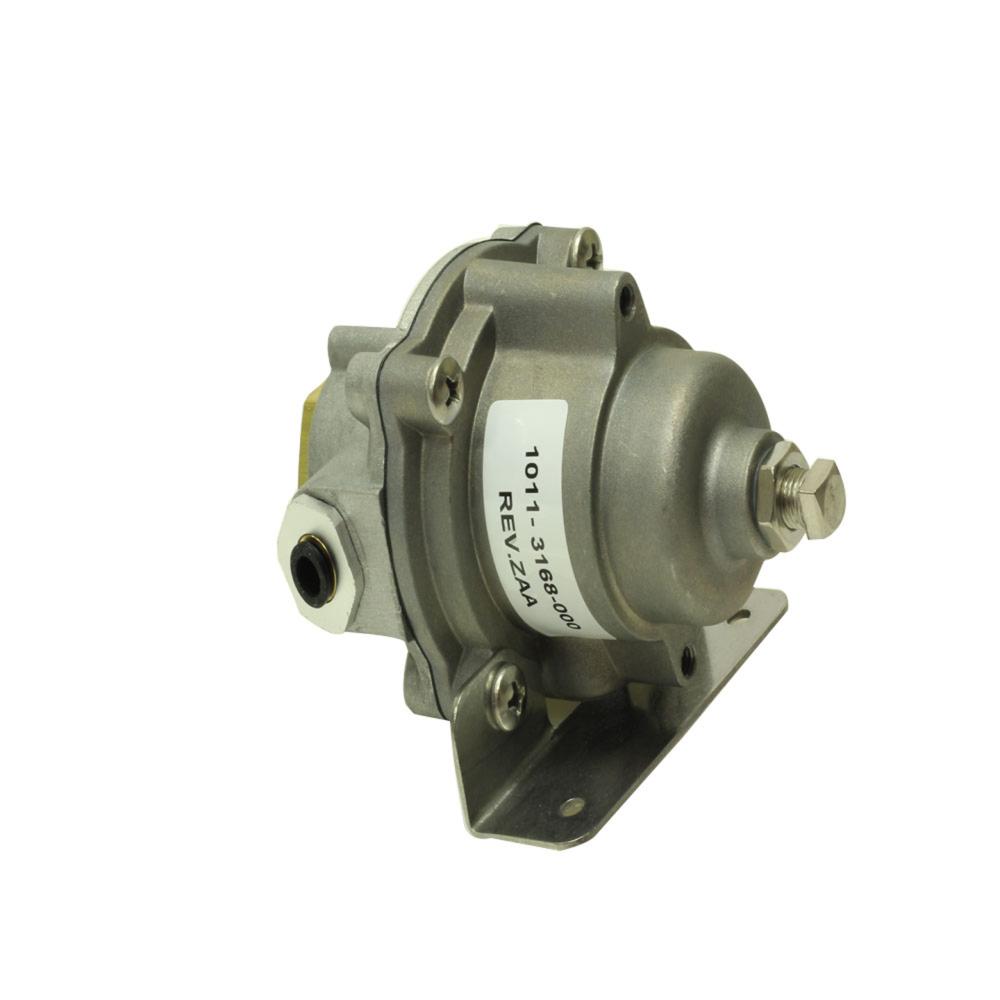

Regulator 35 PSIG Non-Relieving MPOS BCG
1011-3168-000
Anesthesia Delivery
GE Healthcare
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Cleaned to specified levels of hydrocarbon agents (i.e., oils, grease, etc.), particulates (dust, dirt, lint, fibers, paper, rust, etc.) and other foreign materials
  • Does not contain Cadmium (Cd) more than 0.01% by weight and Lead (Pb), Mercury (Hg), Hexavalent Chromium (Cr+6), Poly Brominated Biphenyl (PBB), Poly Brominated Diphenyl Ethers (PBDE), Bis(2-ethylhexyl) phthalate (DEHP), Butyl Benzyl Phthalate (BBP), Di Butyl Phthalate (DBP) and Di Iso Butyl Phthalate (DIBP) more than 0.1% by weight
  • Non-magnetic components
  • Leak proof

Product Overview

The Regulator 35 PSIG Non-Relieving MPOS BCG comes as a part of the Auxiliary Common Gas Outlet (ACGO) module under the Breathing Gas Circuit (BGC) manifold in the anesthesia system. It is a non-relieving regulator. The AGCO is used to provide fresh gas to an auxiliary manual breathing circuit. It provides a flexible breathing circuit in addition to the existing one for specific medical functioning. The regulator reduces a variable gas pressure received from the pipeline or a cylinder regulator down to the required inlet pressure for the flush valve. Once set, the regulator does not require readjustment. It comes into contact with oxygen-enriched gas in the range of 50 to 3000 kPa (7.25 to 435 psig) despite which it is highly efficient in performance and is safe to use in medical equipment. It comes as a component in a wide range of medical equipment systems like S/5 Avance, Aespire View, Avance CS2, Aisys CS2, S/5 Aespire 7900, S/5 AESPIRE 7100, Frame Aespire trolley w/ vent, S/5 AESPIRE 100 and S/5 Aespire 7900.

Compatible Products

Aisys

Aisys

Avance

Avance

Aespire WU_0039

Aespire WU_0039

Return And Exchange

Please ship this returnable part back within 21 calendar days of receipt of your original shipment. Failure to return the part within 21 calendar days may result in an additional charge.
