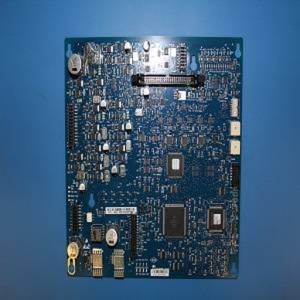

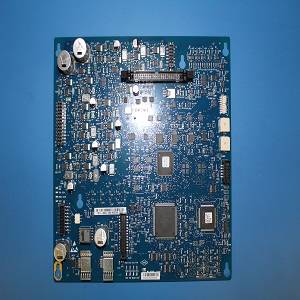

PCA Anesthesia Control Board

1011-3004-000-S
1011-3004-000
Anesthesia Delivery
GE HealthCare
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Anesthesia machine PCA control board
  • Voltage range 12.5V DC
  • High performance Motorola MCF5307 (V4) cold fire microcontroller
  • StrataFlash® embedded memory (P30) family

Product Overview

The Printed Circuit Assembly (PCA) Anesthesia Control Board is a control board used for the Motorola MCF5307 Cold Fire microcontroller with 4M flash and 16M error correcting DRAM. The control board includes 6 Universal Asynchronous Receiver Transmitter (UART) with a 64 byte First in First Out (FIFO) and RS-422 communications to interface with the display unit. The control board receives 12.5 VDC from the power controller board through connector. It communicates to pan assemblies and display unit through a connector. The power to the display unit will be fed through the control board. This control board is being used in MS CARESCAPE™ Monitor B650, Aisys CS2, MS PDM, ARC Aespire 7900, XR Optima XR220amx, ARC Aespire View, UL Voluson P8, ARC Aestiva MRI, ARC Aisys, ARC Avance CS2, ARC S/5 Monitor Anesthesia and in other systems.

Compatible Products

Aisys

Aisys

Avance

Avance

Equivalent Part :

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent partPart Details
1011-3004-000 ANESTHESIA CONTROL BOARD
