Keyboard Front Panel Ventilator Control Display

1006-1325-000
Anesthesia Delivery
GE HealthCare
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • High quality front panel assembly for anesthesia system
  • Easy to install
  • Excellent temperature, chemical and UV resistant
  • Integral green LED indications

Product Overview

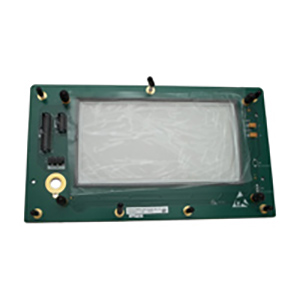

The Keyboard Front Panel Ventilator Control Display is a custom designed panel assembly intended for use in anesthesia machines. The keyboard control panel is used to control the operations of the ventilator system. The control panel assembly is comprised of clear display window, nine membrane switches, rotary encoder, knob button, LED, audio, connectors, green LED, self-clinch studs, hex standoff, display window, dust gasket and graphic overlay label. The front panel assembly has a 480 x 240 pixel EL panel that displays measured and user adjustable parameters. The user can change parameters with touch switches on the membrane or a rotary encoder with a switch. LED's are incorporated in the membrane switch to indicate alarms, mechanical ventilation “On/ Standby” and “Power”. The products high quality material helps to offer reliable operation, efficient functioning and longer life span.

Compatible Products

Aestiva WU_0042

Aestiva WU_0042

Aespire WU_0039

Aespire WU_0039
